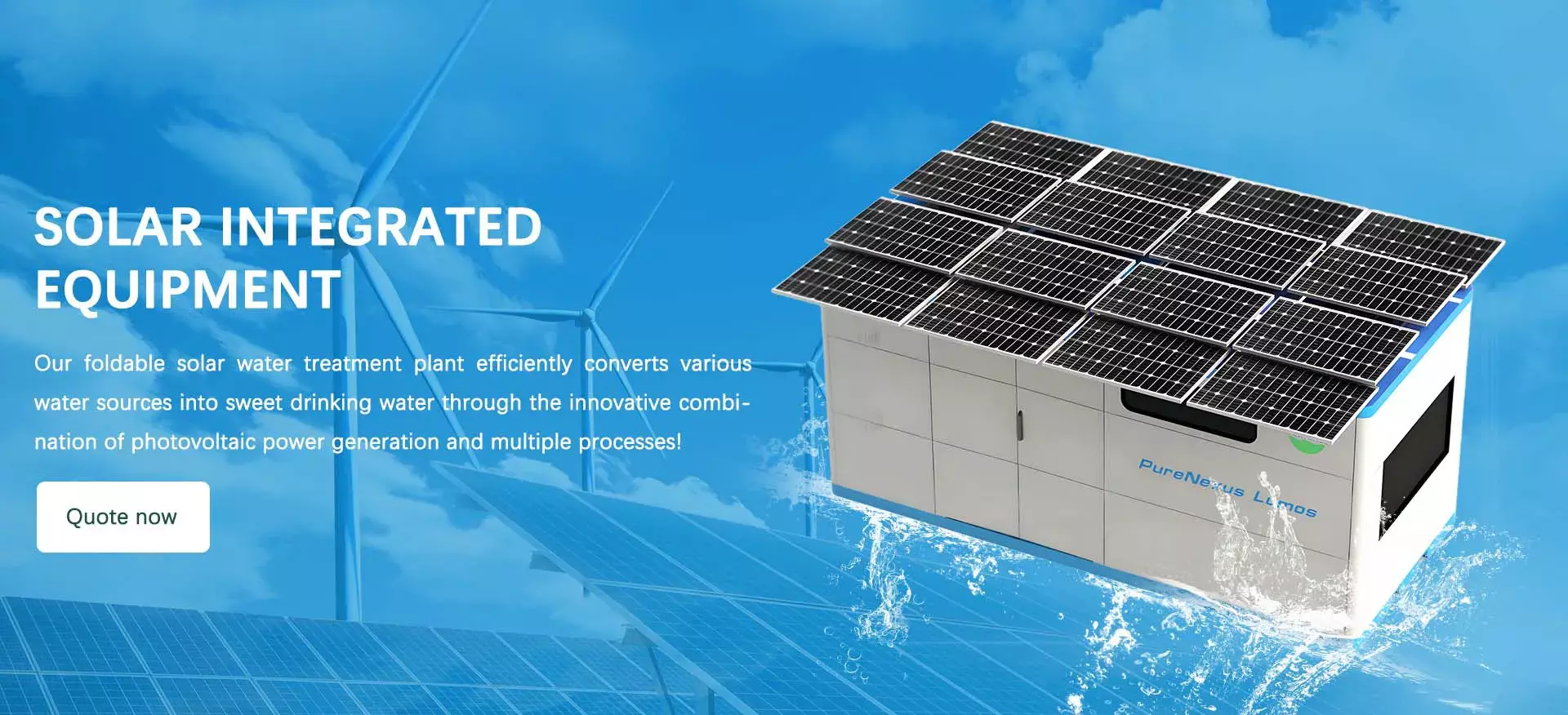

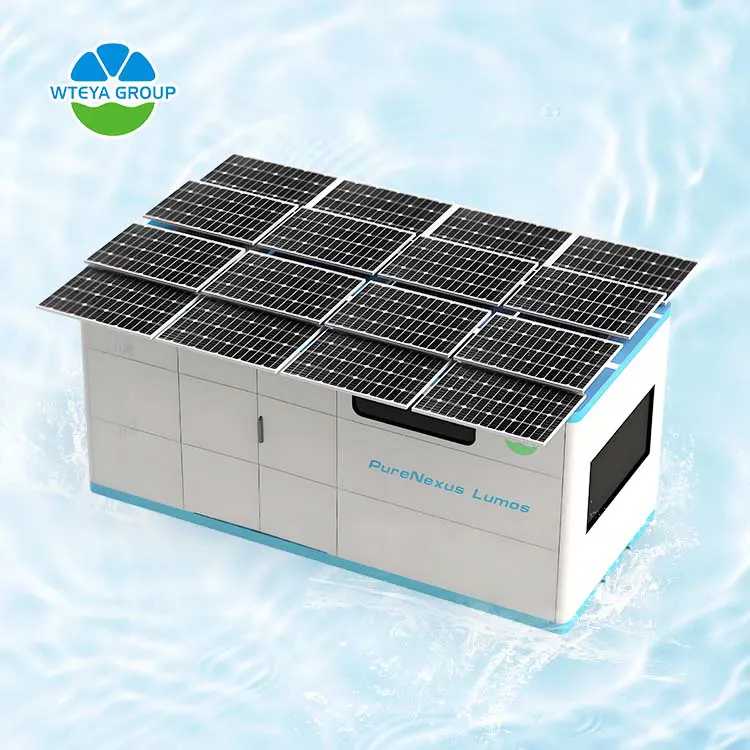

WTEYA Solar Water Treatment Plant
Solve all water treatment problems!
Our foldable solar water treatment plant efficiently converts various water sources into drinking water or clean water through the innovative combination of photovoltaic power generation and multiple processes! 🌊→💧
▸ Seawater ➡️ Drinking water🚰 - Say goodbye to high-salt seawater🌊 and get fresh water easily
▸ Sewage ➡️ Purified water💦 - Remove heavy metals and harmful substances, safe and direct drinking
▸ Groundwater/River water/Well water ➡️ Drinking water✔️ - Improve water quality and meet drinking water standards
Solar Water Treatment Plant Costing
How much does a solar water treatment plant cost? In order to calculate the cost accurately, we recommend that you fill out a questionnaire and then we will be able to prepare a commercial offer, taking into account all the features of your project. We are always ready to provide you with detailed information about the different models, their technical characteristics, performance. We offer a full range of services, from advice and assistance in selecting equipment to its supply, installation and configuration. Our goal is to provide you with the necessary equipment to effectively solve the water treatment problem in your specific situation.
So, you need to email us at info@wteya.com
Our manager will prepare an excellent quote for you
How it works
Our foldable solar water treatment plant efficiently converts various water sources into drinking water or clean water through the innovative combination of photovoltaic power generation and multiple processes! 🌊→💧
🔋 Intelligent energy management
✅ Dual-mode power supply operation: supports intelligent switching between solar energy and city power, and stable operation!
✅ Solar power supply priority: clean power supply, there is electricity when there is sun!
✅ Efficient energy storage system: can continue to work on rainy days to ensure uninterrupted water supply!
✅ 130W super power saving: one day's electricity bill ≈ half a bottle of mineral water!
🌊 Professional water treatment technology
▸ Seawater ➡️ Drinking water🚰 - Say goodbye to high-salt seawater🌊 and get fresh water easily
▸ Sewage ➡️ Purified water💦 - Remove heavy metals and harmful substances, safe and direct drinking
▸ Groundwater/River water/Well water ➡️ Drinking water✔️ - Improve water quality and meet drinking water standards
Main Configuration Parameters Of PureNexus Lumos

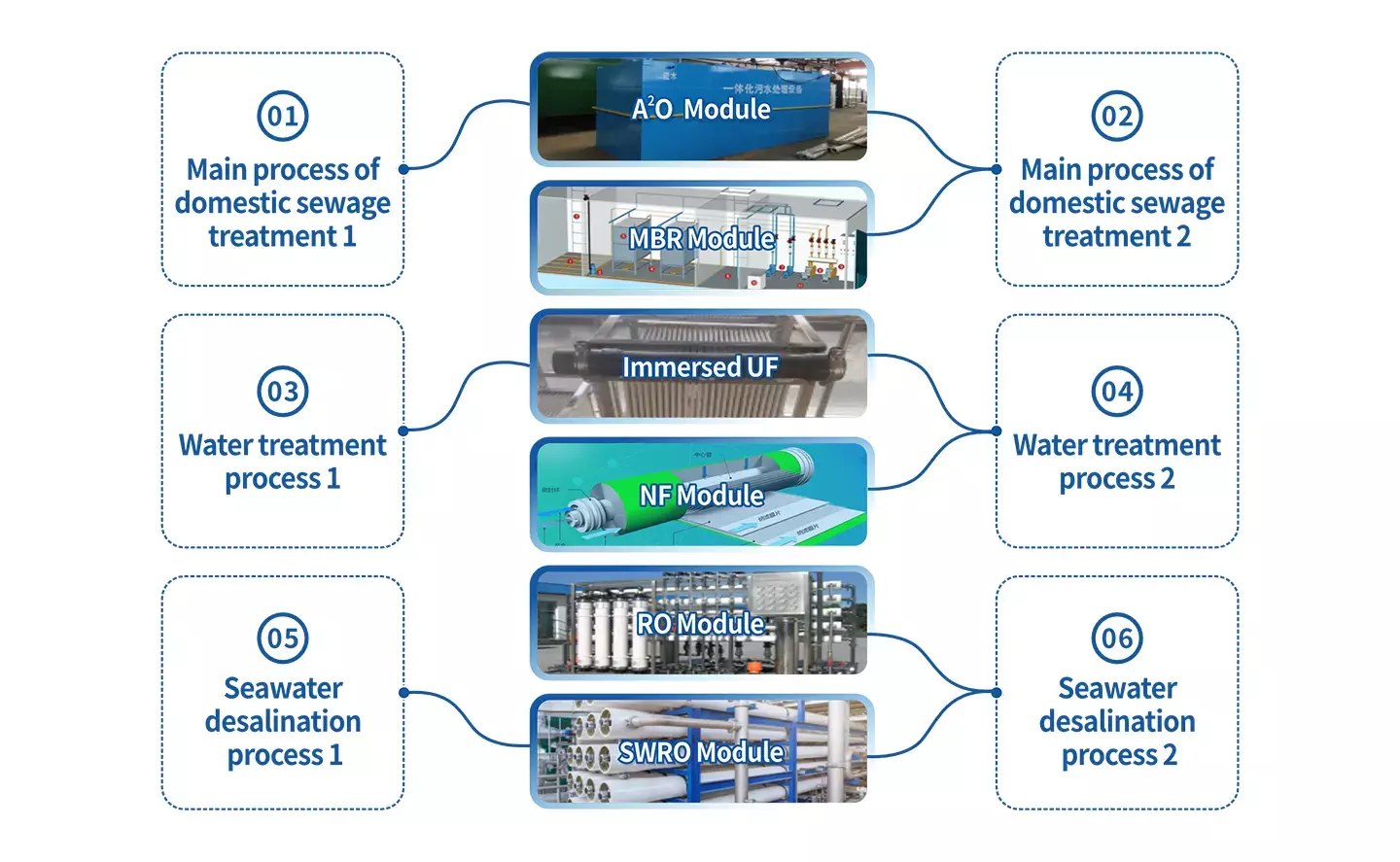

| Optional Packages For The PureNexus Lumos System | |||||||
| Function Combination | Application | Applicable Water Source | Water Production Standard | Water Production | Suitable For People | Installed Power | Process Combination |
| ① | Domestic Sewage Treatment | Domestic Sewage | Local Emission Standards | 10m³/d | 40~60 People | 1.2kw | A²O+Precipitation |
| ② | Domestic Sewage Treatment | Domestic Sewage | Local Emission Standards | 10m³/d | 40~60 People | 1.4kw | A²O+MBR |
| ③ | Domestic Water | River Water, Surface Water, Etc. | Local Emission Standards | 50m/d | 150~200 People | 0.9kw | Immersed UF |
| ④ | Drinking Water | River Water, Surface Water, Etc. | Drinking Water Standard | 40m³/d | 150~200 People | 2kw | Immersed UF+NF |
| ⑤ | Drinking Water | Seawater | Drinking Water Standard | 2m³/d | 8~15 People | 3.6kw | SWRO |
| ⑥ | Direct Drinking Water | Seawater | Direct Drinking Water Standard | 1.6m³/d | 400~500 People | 4.6kw | SWRO+RO |
Main Configuration Parameters Of PureNexus Lumos

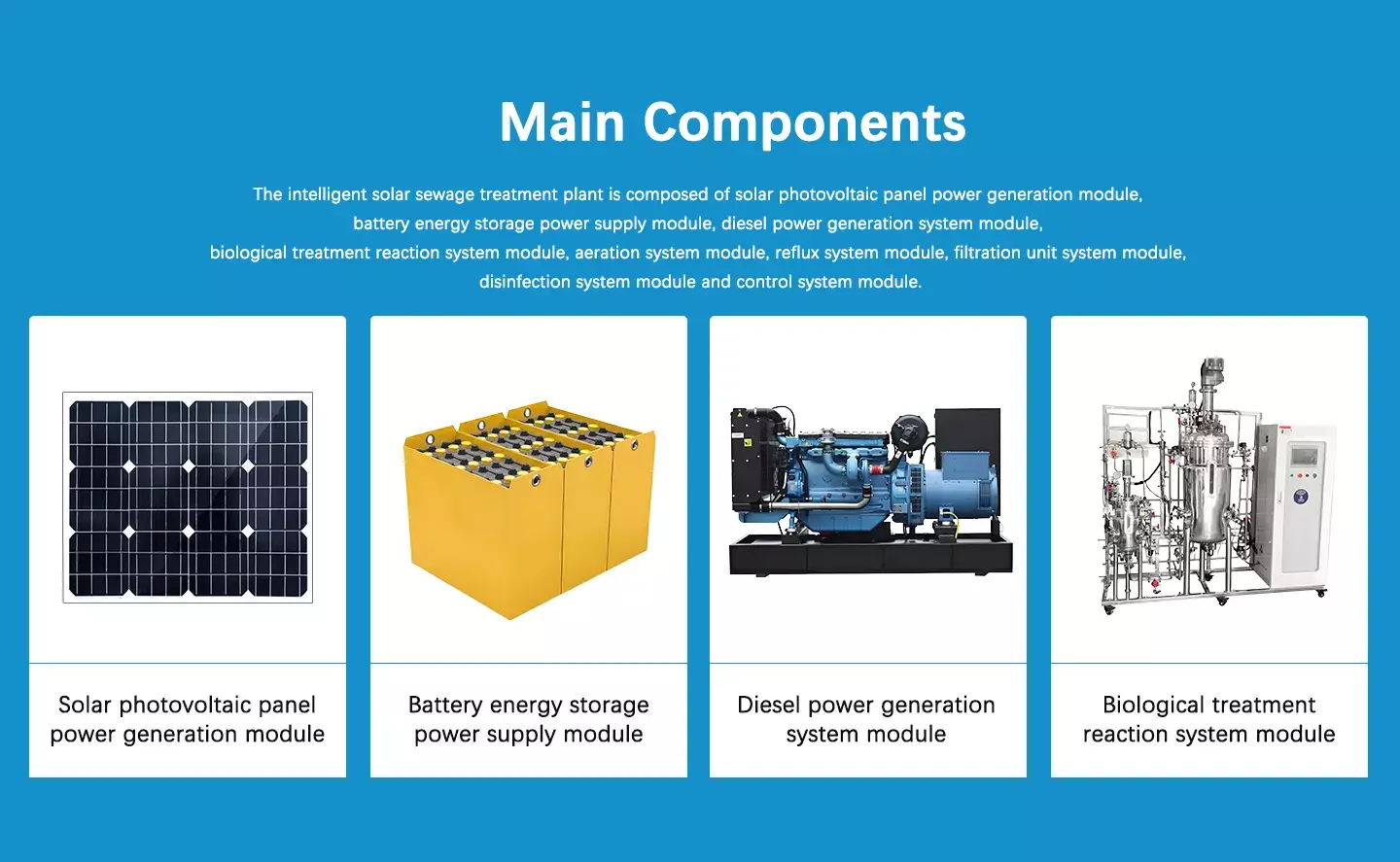

| Included Equipment | Specifications | Quantity | Remark |
| Photovoltaic Panels | 880*1200*35mm,Single Crystal 200W | Scalable | |
| Dynamo | 2.5kW,230V | Scalable | |
| Storage Battery | Voltage:307.2V Battery Capacity:100AH | Scalable | |
| Equipment Room | 2.6*1.0*(H)1.9m | / | |
| Generator Room | 1.0*1.0*(H)1.9m | / | |
| Battery Storage Room | 1.3*1.0*(H)1.9m | / | |
| Bedroom | 2.1*1.0*(H)1.9m | / | |
| Bathroom | 1.1*1.0*(H)1.9m | / | |
| Overall Dimensions | 2.2*5.0*(H)2.45m | Unexpanded Size | |
| 3.6*5.0*(H)2.45m | Expanded Size | ||
Note:This equipment is customized and its power is different according to different water treatment volume and process combination.
Where it can be used

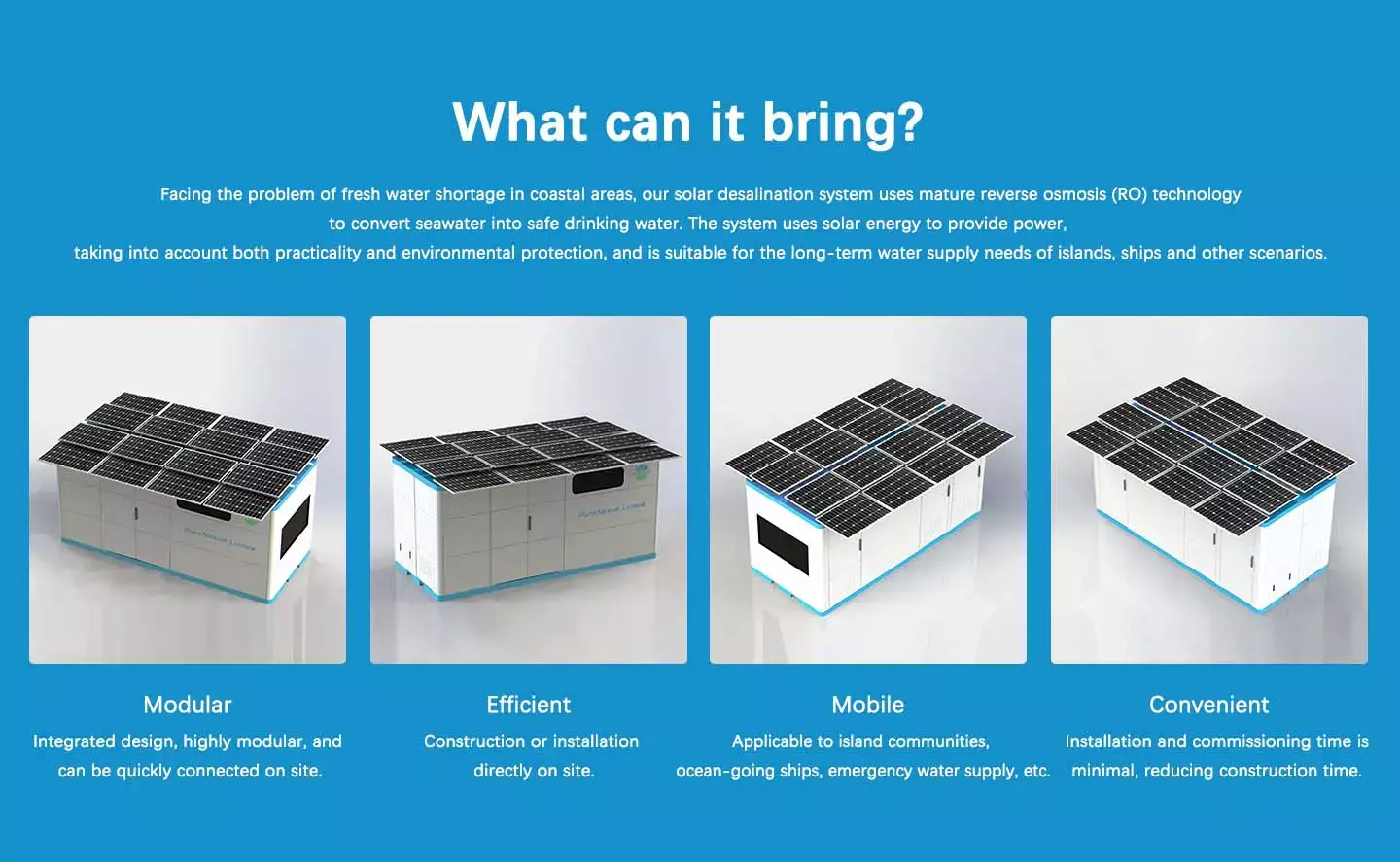

WTEYA's Solar water treatment plant PureNexus Lumos For the treatment of seawater, tap water, domestic sewage and other sewage with similar composition (e.g. food industry, some chemical industry, microbiological industry). Modular plants are particularly popular because they are prefabricated in the factory, which significantly reduces the turnkey installation and commissioning time.
WTEYA Manufacturer
WTEYA pursues digital and intelligent manufacturing to provide customers with excellent products and services. We not only provide a series of standardized products that have been rigorously tested and have stable performance to meet a wide range of industry needs. We also provide OEM&ODM customized services to meet the unique needs of customers.
